qPCR analysis
.Rmd script
Load libraries
library(ggplot2) ## for plotting
library(tidyverse) ## for data table manipulation
## ── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
## ✔ dplyr 1.1.4 ✔ readr 2.1.5
## ✔ forcats 1.0.0 ✔ stringr 1.5.1
## ✔ lubridate 1.9.3 ✔ tibble 3.2.1
## ✔ purrr 1.0.2 ✔ tidyr 1.3.1
## ── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
## ✖ dplyr::filter() masks stats::filter()
## ✖ dplyr::lag() masks stats::lag()
## ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
library(readr) ## for reading in tsv files
library(readxl) ## for reading in excel files
library(stringr) ## for data transformation
library(strex) ## for data transformation
library(writexl) ## for excel output
library(purrr) ## for data transformation
library(ggrepel) ## For geom_text_repel
library(drc) ## for LOD calculations
## Loading required package: MASS
##
## Attaching package: 'MASS'
##
## The following object is masked from 'package:dplyr':
##
## select
##
##
## 'drc' has been loaded.
##
## Please cite R and 'drc' if used for a publication,
## for references type 'citation()' and 'citation('drc')'.
##
##
## Attaching package: 'drc'
##
## The following objects are masked from 'package:stats':
##
## gaussian, getInitial
library(ggpubr)
Evaluating standard curve
Reading in data
### USER EDITS:
## 1. Replace path of file with your own standard curve
std_curve <- read.csv("example standard curve.csv", skip = 19) %>% dplyr::rename(St_Quant=7) %>%
## Calculate mean Cq
dplyr::group_by(Sample) %>%
mutate(Cq_mean = mean(Cq, na.rm=TRUE))
Calculating standard curve metrics
# Fit a linear model to calculate slope and intercept
linear_model <- lm(Cq_mean ~ log10(St_Quant), data = std_curve)
# Extract slope and y-intercept
slope <- coef(linear_model)[2] # Slope (m)
y_intercept <- coef(linear_model)[1] # Y-intercept (b)
efficiency <- (-1+(10^(-1/slope)))
## Standard curve calculations (assuming std_curve is already grouped by Sample)
std_curve <- std_curve %>%
## calculate detection rates (number of Cqs present / number of replicates)
mutate(detection_rate = sum(!is.na(Cq)) / n(),
## calculate Cq stats - SD, and CV
Cq_sd = sd(Cq, na.rm=TRUE),
#Cq_cv = (Cq_sd / Cq_mean) * 100 ## old method
Cq_cv = sqrt(((1+efficiency) ^ ((Cq_sd^2) * log(1+efficiency))) - 1)) %>%
ungroup()
Confirming negatives were clean and filter them out
## all output should have NAs in Cq column
## if any negatives have values, then pause and re-run those samples if needed
std_curve %>% filter(Sample == "neg")
## # A tibble: 3 × 11
## Well Fluor Target Content Sample Cq St_Quant Cq_mean detection_rate Cq_sd
## <chr> <chr> <chr> <chr> <chr> <dbl> <dbl> <dbl> <dbl> <dbl>
## 1 F12 SYBR Library NTC neg NA NA NaN 0 NA
## 2 G12 SYBR Library NTC neg NA NA NaN 0 NA
## 3 H12 SYBR Library NTC neg NA NA NaN 0 NA
## # ℹ 1 more variable: Cq_cv <dbl>
std_curve <- std_curve %>% filter(!Sample == "neg")
Calculating LOD and LOQ based on discrete thresholds
Making list of standard curve quantities
# Assuming std_curve is your data frame
quants <- std_curve %>% dplyr::select(St_Quant) %>% distinct() %>% arrange(desc(St_Quant))
# Creating a factored list of these standard curve values
quant_list <- as.factor(quants$St_Quant)
Find the Limit of Detection (LOD)
# Find the first value below the 0.95 detection rate
first_below_LOD_threshold <- std_curve %>% filter(detection_rate < 0.95) %>% arrange(desc(St_Quant)) %>%
slice(1) %>% dplyr::select(St_Quant)
# Get the standard quantity of the first value below the threshold
below_threshold_LOD_quant <- first_below_LOD_threshold$St_Quant[1]
# Find the index of this quantity in the ordered list
LOD_index <- which(quants$St_Quant == below_threshold_LOD_quant)
LOD <- quants$St_Quant[LOD_index - 1]
Find the Limit of Quantification (LOQ)
# Find the first value below the 0.35 CV
first_above_LOQ_threshold <- std_curve %>% filter(Cq_cv > 0.350) %>% arrange(desc(St_Quant)) %>%
slice(1) %>% dplyr::select(St_Quant)
# Get the standard quantity of the first value below the threshold
above_threshold_LOQ_quant <- first_above_LOQ_threshold$St_Quant[1]
# Find the index of this quantity in the ordered list
LOQ_index <- which(quants$St_Quant == above_threshold_LOQ_quant)
LOQ <- quants$St_Quant[LOQ_index - 1]
Using modeling to calculate LOD and LOQ
## Different models
#
# LOQ1 <- nls(Cq.CV~SSasymp(log10(Standards),Asym,R0,lrc),
# data=DAT2[DAT2$Target==Targets[i],])
#
#
# LOQ2 <- lm(Cq.CV~log10(Standards),data=DAT2[DAT2$Target==Targets[i],])
#
#
# LOQ3 <- lm(Cq.CV~poly(log10(Standards),2),data=DAT2[DAT2$Target==Targets[i],])
#
# LOQ4 <- lm(Cq.CV~poly(log10(Standards),3),data=DAT2[DAT2$Target==Targets[i],])
#
# LOQ5 <- lm(Cq.CV~poly(log10(Standards),4),data=DAT2[DAT2$Target==Targets[i],])
#
# LOQ6 <- lm(Cq.CV~poly(log10(Standards),5),data=DAT2[DAT2$Target==Targets[i],])
#
# LOQ7 <- lm(Cq.CV~poly(log10(Standards),6),data=DAT2[DAT2$Target==Targets[i],])
## find residual standard error
## pick best fitting model

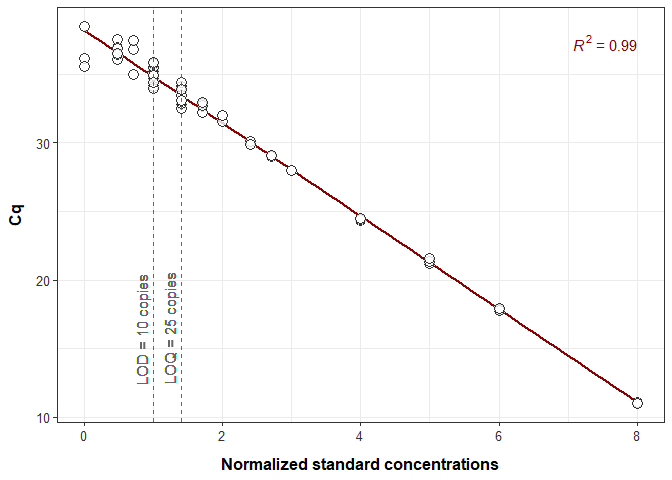

Plotting standard curve
std_curve %>%
## Taking only those detections with >50% to make curve
filter(detection_rate > 0.50) %>%
## Plotting that std. curve
ggplot(., aes(x = log10(St_Quant), y = Cq)) +
geom_smooth(method = 'lm', se = FALSE, color = "darkred") +
stat_regline_equation(size = 4, color = 'darkred',
aes(label = after_stat(rr.label)), hjust=1,
label.x.npc = "right", label.y.npc = "top") +
geom_point(color = 'black', fill = 'white', shape = 21, size = 3.5, alpha=0.8) +
## ADDING LOD LINE -- if no line shows up, all st. curve is qualitative
geom_vline(xintercept=log10(LOD), linetype="dashed", color = "grey40") +
geom_text(aes(x = log10(LOD), y = max(std_curve$Cq, na.rm=TRUE) * 0.3,
label = paste("LOD =", LOD, "copies")),
angle = 90, vjust = -0.5, hjust = -0.1, color = "grey40", size = 4) +
## ADDING LOQ LINE -- if no line shows up, all st. curve is quantitative
geom_vline(xintercept=log10(LOQ), linetype="dashed", color = "grey40") +
geom_text(aes(x = log10(LOQ), y = max(std_curve$Cq, na.rm=TRUE) * 0.3,
label = paste("LOQ =", LOQ, "copies")),
angle = 90, vjust = -0.5, hjust = -0.1, color = "grey40", size = 4) +
theme_bw() +
labs(
x = "Normalized standard concentrations",
y = "Cq"
) +
theme(axis.text.y = element_text(size=10, color="grey20"),
axis.text.x = element_text(size=10, color="grey20"),
axis.title.y = element_text(margin = margin(t = 0, r = 10, b = 0, l = 0), size=12, face="bold"),
axis.title.x = element_text(margin = margin(t = 10, r = 0, b = 0, l = 0), size=12, face="bold"))
## Warning: Use of `std_curve$Cq` is discouraged.
## ℹ Use `Cq` instead.
## Warning in geom_text(aes(x = log10(LOD), y = max(std_curve$Cq, na.rm = TRUE) * : All aesthetics have length 1, but the data has 93 rows.
## ℹ Please consider using `annotate()` or provide this layer with data containing
## a single row.
## Warning: Use of `std_curve$Cq` is discouraged.
## ℹ Use `Cq` instead.
## Warning in geom_text(aes(x = log10(LOQ), y = max(std_curve$Cq, na.rm = TRUE) * : All aesthetics have length 1, but the data has 93 rows.
## ℹ Please consider using `annotate()` or provide this layer with data containing
## a single row.
## `geom_smooth()` using formula = 'y ~ x'
## Warning: Removed 2 rows containing non-finite outside the scale range
## (`stat_smooth()`).
## Warning: Removed 2 rows containing non-finite outside the scale range
## (`stat_regline_equation()`).
## Warning: Removed 2 rows containing missing values or values outside the scale range
## (`geom_point()`).
ggsave("example output/Standard_curve.png", width=6, height=4)
## Warning: Use of `std_curve$Cq` is discouraged.
## ℹ Use `Cq` instead.
## Warning in geom_text(aes(x = log10(LOD), y = max(std_curve$Cq, na.rm = TRUE) * : All aesthetics have length 1, but the data has 93 rows.
## ℹ Please consider using `annotate()` or provide this layer with data containing
## a single row.
## Warning: Use of `std_curve$Cq` is discouraged.
## ℹ Use `Cq` instead.
## Warning in geom_text(aes(x = log10(LOQ), y = max(std_curve$Cq, na.rm = TRUE) * : All aesthetics have length 1, but the data has 93 rows.
## ℹ Please consider using `annotate()` or provide this layer with data containing
## a single row.
## `geom_smooth()` using formula = 'y ~ x'
## Warning: Removed 2 rows containing non-finite outside the scale range
## (`stat_smooth()`).
## Warning: Removed 2 rows containing non-finite outside the scale range
## (`stat_regline_equation()`).
## Warning: Removed 2 rows containing missing values or values outside the scale range
## (`geom_point()`).
Calculating slope and y-intercept
These values get fed in later in data calculations.
# Fit a linear model to calculate slope and intercept
linear_model <- lm(Cq_mean ~ log10(St_Quant), data = std_curve)
# Extract slope and y-intercept
slope <- coef(linear_model)[2] # Slope (m)
y_intercept <- coef(linear_model)[1] # Y-intercept (b)
Reading in datafiles and merging into one large dataframe
### USER EDITS:
## 1. Replace path of files
## 2. In str_after_nth(file.ID, "results/", 1), make sure this matches the folder ending referenced in list.files
df <-
# list files in directory following a particular pattern
list.files(path = 'example input/qPCR_results/', pattern = ".csv", full.names = TRUE) %>%
# get the column names
set_names(.) %>%
# join all files together in one data frame by file ID, skipping first 19 rows
map_dfr(~read.csv(., skip = 19), .id = "file.ID") %>%
# turn file.ID into just plate information (plate.ID)
mutate(file.ID = str_after_nth(file.ID, "results/", 1),
file.ID = str_before_nth(file.ID, ".csv", 1)) %>%
dplyr::rename(plate.ID = file.ID, Sample_ID = Sample) %>%
## RI STRIPED BASS SPECIFIC CODE FOR SAMPLE ID MISMATCHES
mutate(Sample_ID = gsub(" #1", "_1", Sample_ID),
Sample_ID = gsub(" #2", "_2", Sample_ID)) %>%
mutate(Sample_ID = case_when(
str_detect(Well, "4") & Sample_ID == "2/21/24_ONE_NTR" ~ paste0(Sample_ID, "_1"),
str_detect(Well, "5") & Sample_ID == "2/21/24_ONE_NTR" ~ paste0(Sample_ID, "_2"),
TRUE ~ Sample_ID
))
head(df)
## plate.ID Well Fluor Target Content Sample_ID Cq
## 1 26 AUG 2024 PLATE 1 A01 SYBR Library Unkn 1/17/24_IPC_GCO NA
## 2 26 AUG 2024 PLATE 1 A02 SYBR Library Unkn 1/17/24_IPC_BBC NA
## 3 26 AUG 2024 PLATE 1 A03 SYBR Library Unkn 1/17/24_NAN_EDI NA
## 4 26 AUG 2024 PLATE 1 A04 SYBR Library Unkn 1/17/24_EPS_DMF 34.79
## 5 26 AUG 2024 PLATE 1 A05 SYBR Library Unkn 1/17/24_WBJ_MHB NA
## 6 26 AUG 2024 PLATE 1 A06 SYBR Library Unkn 1/17/24_NBT_SAK NA
## Starting.Quantity..SQ.
## 1 NA
## 2 NA
## 3 NA
## 4 NA
## 5 NA
## 6 NA
Reading in meta df
Sample ID from meta needs to match the Sample ID from the qPCR output
meta <- read_xlsx("example input/client_metadata_example.xlsx") %>%
## RI STRIPED BASS SPECIFIC CODE FOR SAMPLE ID ISSUES
## For other projects, address any Sample_ID differences (Sample_ID on qPCR output needs to match meta)
mutate(Sample_ID = gsub(" #1", "_1", Sample_ID),
Sample_ID = gsub(" #2", "_2", Sample_ID))
Evaluating No Template Controls (NTCs; Negatives)
NTC <- df %>%
filter(grepl("neg", Sample_ID, ignore.case = TRUE))
## Calculate number of negatives with Cq values
sum(!is.na(NTC$Cq))
## [1] 1
## Calculate number of negatives total
nrow(NTC)
## [1] 120
## Calculate number of plates
length(unique(NTC$plate.ID))
## [1] 20
Spike information

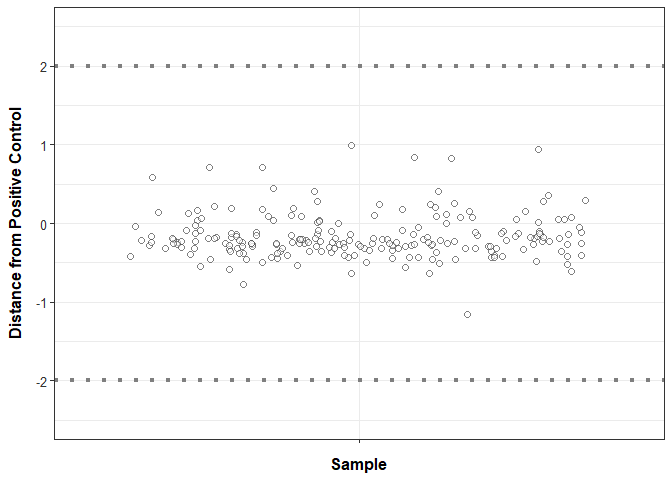

For each sample, calculate the distance from the Positive Spike-in value.
spike_samples <- df %>%
## subset to spiked samples
filter(grepl("spike|pos", Sample_ID, ignore.case = TRUE)) %>%
## remove spike from SampleID column only if 'pos' is NOT in the Sample_ID
mutate(Sample_ID = case_when(
!grepl("pos", Sample_ID, ignore.case = TRUE) ~ str_before_nth(Sample_ID, " spike", 1),
TRUE ~ Sample_ID
)) %>%
## group by plate ID and sample ID
group_by(plate.ID, Sample_ID) %>%
## calculate mean of spikes per plate and sample
## ungroup by Sample_ID so the next calculation is only done grouped by Plate
mutate(Filter_Cq = mean(Cq)) %>%
ungroup(Sample_ID) %>%
## calculate difference from plate's Cq value
mutate(Cq_diff = Filter_Cq - Filter_Cq[grepl("pos", Sample_ID, ignore.case = TRUE)]) %>%
ungroup(); spike_samples
## # A tibble: 480 × 10
## plate.ID Well Fluor Target Content Sample_ID Cq Starting.Quantity..SQ.
## <chr> <chr> <chr> <chr> <chr> <chr> <dbl> <lgl>
## 1 26 AUG 202… G01 SYBR Libra… Unkn 1/17/24_… 10.5 NA
## 2 26 AUG 202… G02 SYBR Libra… Unkn 1/17/24_… 10.6 NA
## 3 26 AUG 202… G03 SYBR Libra… Unkn 1/17/24_… 10.8 NA
## 4 26 AUG 202… G04 SYBR Libra… Unkn 1/17/24_… 10.8 NA
## 5 26 AUG 202… G05 SYBR Libra… Unkn 1/17/24_… 10.5 NA
## 6 26 AUG 202… G06 SYBR Libra… Unkn 1/17/24_… 11.0 NA
## 7 26 AUG 202… G07 SYBR Libra… Unkn 1/17/24_… 10.8 NA
## 8 26 AUG 202… G08 SYBR Libra… Unkn 1/17/24_… 11 NA
## 9 26 AUG 202… G09 SYBR Libra… Unkn 1/17/24_… 10.7 NA
## 10 26 AUG 202… G10 SYBR Libra… Unkn 1/18/24_… 10.9 NA
## # ℹ 470 more rows
## # ℹ 2 more variables: Filter_Cq <dbl>, Cq_diff <dbl>
## Remove any lab error samples
## RI Striped Bass only
## removing 2/21/24 DI Blank 1 (pipetting issue)
spike_samples <- spike_samples %>%
filter(!Sample_ID == "2/21/24_Tap Blank_1")
Plot those distance values and save to output folder
# Create a jitter position object
jitter_pos <- position_jitter(width = 0.45, seed = 123)
## Plot samples
spike_samples %>% dplyr::select(Target, Sample_ID, Cq_diff) %>% distinct() %>%
ggplot(., aes(x=Target, y = Cq_diff)) +
geom_hline(yintercept = c(-2, 2), linetype = "dotted", color = "grey50", size=1.5) +
geom_jitter(aes(fill = abs(Cq_diff) > 2),
size = 2, alpha = 0.5, color = 'black', shape = 21, #width = 0.45,
position = jitter_pos) +
scale_fill_manual(values = c("TRUE" = "red", "FALSE" = "white")) +
geom_text_repel(
aes(label = ifelse(abs(Cq_diff) > 2, Sample_ID, "")), position = jitter_pos,
size = 3, box.padding = 0.5, point.padding = 0.2, force = 2
) +
labs(
x = "Sample",
y = "Distance from Positive Control"
) +
theme_bw() +
## keep y axis at least -2,2 but extend to max
coord_cartesian(
ylim = c(
min(-2.5, min(spike_samples$Cq_diff, na.rm = TRUE)),
max(2.5, max(spike_samples$Cq_diff, na.rm = TRUE))
)) +
## theme variables
theme(panel.background=element_rect(fill='white', colour='black'),
legend.position = "none",
axis.text.y = element_text(size=10, color="grey20"),
axis.text.x = element_blank(),
axis.title.y = element_text(margin = margin(t = 0, r = 10, b = 0, l = 0), size=12, face="bold"),
axis.title.x = element_text(margin = margin(t = 10, r = 0, b = 0, l = 0), size=12, face="bold"))
## Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
## ℹ Please use `linewidth` instead.
## This warning is displayed once every 8 hours.
## Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
## generated.
ggsave("example output/Inhibition.png", width=4, height=4)
Filter data Cq, Number of Replicates, and Copy Num calculations
## Complete calculations
filters_df <- df %>%
## subset out the spiked samples
filter(!grepl("spike|pos|neg", Sample_ID, ignore.case = TRUE)) %>%
## group by plate ID and sample ID
group_by(plate.ID, Sample_ID) %>%
## calculate mean of Cq per plate and sample, replacing NaN with NA
mutate(Filter_Cq = if_else(is.nan(mean(Cq, na.rm = TRUE)), NA_real_, mean(Cq, na.rm = TRUE))) %>%
## calculate # of replicates
mutate(Filter_Num_Replicates = sum(!is.na(Cq))) %>%
## calculate copy number
mutate(Filter_Copy_Num = 10^((Filter_Cq-y_intercept)/slope)) %>%
## summarize df with specific columns
dplyr::select(plate.ID, Sample_ID, Filter_Cq, Filter_Num_Replicates, Filter_Copy_Num) %>%
distinct() %>% ungroup()
Addressing duplicate samples (a.k.a., re-runs)
This code assumes the user wants to always use the most recent plate if completing a sample for a 2nd time. If this is not the case, chat with Fisheries team to make sure code reflect user’s needs.
filters_df <- filters_df %>%
## Separating Plate.ID into Date and Plate Number
separate(plate.ID, c("Plate_date", "Plate_number"), sep = " PLATE") %>%
## Change Date column to a Date format
mutate(Plate_date = dmy(Plate_date)) %>%
## Group by Sample_ID and keep only the row with the most recent date
group_by(Sample_ID) %>%
slice_max(Plate_date, n = 1, with_ties = FALSE) %>% ungroup()
## confirm the number of rows matches the number of unique Sample IDs (output should be TRUE)
nrow(filters_df) == length(unique(filters_df$Sample_ID))
## [1] TRUE
Combing with meta and collapsing by sample
samples_df <- filters_df %>% right_join(meta, ., by = "Sample_ID") %>%
group_by(Date, Sample_Location) %>%
## mutate to mean Ct value
mutate(`Mean Ct` = if_else(is.nan(mean(Filter_Cq, na.rm = TRUE)),
NA_real_, mean(Filter_Cq, na.rm = TRUE)),
## take highest value of number of replicates
`Number of Replicates` = max(Filter_Num_Replicates, na.rm=TRUE),
## sum of 2 copy number values
`Mean Copy Number` = ifelse(sum(Filter_Copy_Num, na.rm=TRUE) == 0, NA,
sum(Filter_Copy_Num, na.rm=TRUE))
) %>%
ungroup() %>%
## summarizing df
dplyr::select(Date, Sample_Location, Sample_Type, Number_of_Filters,
`Mean Ct`, `Number of Replicates`, `Mean Copy Number`) %>%
distinct() %>%
## adding new SampleID back in
unite(Sample_ID, Date, Sample_Location, sep = " ", remove=F)
head(samples_df)
## # A tibble: 6 × 8
## Sample_ID Date Sample_Location Sample_Type Number_of_Filters
## <chr> <dttm> <chr> <chr> <lgl>
## 1 2024-01-17 … 2024-01-17 00:00:00 DI Blank #1 Blank NA
## 2 2024-01-17 … 2024-01-17 00:00:00 DI Blank #2 Blank NA
## 3 2024-01-17 … 2024-01-17 00:00:00 GBP_OCA Field NA
## 4 2024-01-17 … 2024-01-17 00:00:00 IPC_GCO Field NA
## 5 2024-01-17 … 2024-01-17 00:00:00 IPC_BBC Field NA
## 6 2024-01-17 … 2024-01-17 00:00:00 NAN_EDI Field NA
## # ℹ 3 more variables: `Mean Ct` <dbl>, `Number of Replicates` <int>,
## # `Mean Copy Number` <dbl>
## Confirm that the number of samples output from qPCR matches the number of samples in the metadata (output = TRUE)
nrow(samples_df) == nrow(meta %>% dplyr::select(-Sample_ID) %>% distinct())
## [1] TRUE
Normalizing data
## normalize data
normalized_df <- samples_df %>%
## take log10 of copy number
mutate(`Mean Copy Number Normalized` = log10(`Mean Copy Number` + 1))
## create an outlier cut-off
cutoff <- quantile(normalized_df$`Mean Copy Number Normalized`, na.rm = TRUE, probs=0.75) +
1.5*IQR(normalized_df$`Mean Copy Number Normalized`, na.rm=TRUE)
## create an outlier cut-off
cutoff_below <- quantile(normalized_df$`Mean Copy Number Normalized`, na.rm = TRUE, probs=0.25) -
1.5*IQR(normalized_df$`Mean Copy Number Normalized`, na.rm=TRUE)
## Output the values that outside the cutoff
normalized_df %>% filter(`Mean Copy Number Normalized` > cutoff)
## # A tibble: 3 × 9
## Sample_ID Date Sample_Location Sample_Type Number_of_Filters
## <chr> <dttm> <chr> <chr> <lgl>
## 1 2024-01-18 … 2024-01-18 00:00:00 POP_SEC Field NA
## 2 2024-01-18 … 2024-01-18 00:00:00 POP_OUT Field NA
## 3 2024-01-18 … 2024-01-18 00:00:00 PJP_CFL Field NA
## # ℹ 4 more variables: `Mean Ct` <dbl>, `Number of Replicates` <int>,
## # `Mean Copy Number` <dbl>, `Mean Copy Number Normalized` <dbl>
normalized_df %>% filter(`Mean Copy Number Normalized` < cutoff_below)
## # A tibble: 0 × 9
## # ℹ 9 variables: Sample_ID <chr>, Date <dttm>, Sample_Location <chr>,
## # Sample_Type <chr>, Number_of_Filters <lgl>, Mean Ct <dbl>,
## # Number of Replicates <int>, Mean Copy Number <dbl>,
## # Mean Copy Number Normalized <dbl>
## the cutoff we move forward with is the cutoff (high) but confirm no values are below the lower cutoff value
Adding present/absent information
normalized_df <- normalized_df %>%
mutate(Detection = case_when(
is.na(`Mean Copy Number Normalized`) ~ "Absent",
TRUE ~ "Present"
))

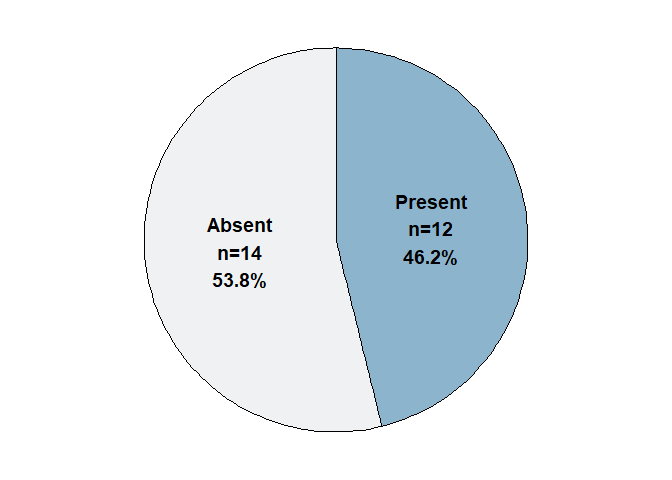

Blank specific information
blank_df <- normalized_df %>% subset(Sample_Type == "Blank")
detection_counts <- blank_df %>%
count(Detection) %>%
mutate(percentage = n / sum(n) * 100,
label = paste0(Detection, "\n", "n=", n, "\n", round(percentage, 1), "%"))
ggplot(detection_counts, aes(x = "", y = n, fill = Detection)) +
geom_bar(stat = "identity", width = 1, color = "black", alpha=0.75) +
coord_polar("y", start = 0) +
geom_text(aes(label = label),
position = position_stack(vjust = 0.5),
size = 5,
fontface = "bold") +
theme_void() +
theme(legend.position = "none",
#plot.title = element_text(hjust = 0.5, size = 16, face = "bold")
) +
scale_fill_manual(values = c("#e9ecef", "#669bbc"))
ggsave("example output/Blanks_piechart.png", width=4, height=4)
Sample preliminary data

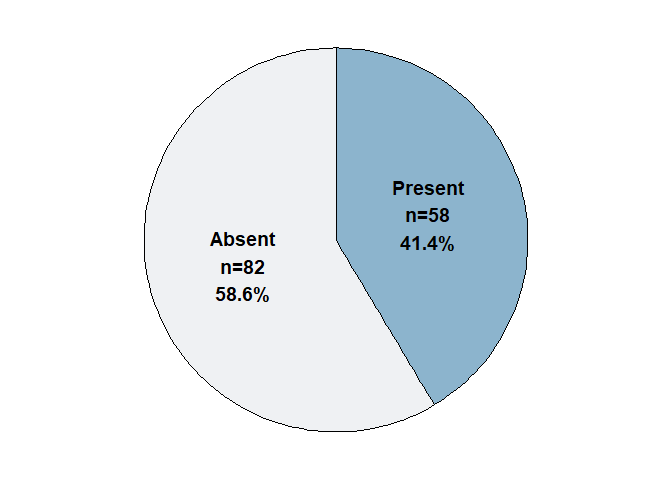

Pie chart
fieldsamples_df <- normalized_df %>% subset(Sample_Type == "Field")
field_detection_counts <- fieldsamples_df %>%
count(Detection) %>%
mutate(percentage = n / sum(n) * 100,
label = paste0(Detection, "\n", "n=", n, "\n", round(percentage, 1), "%"))
ggplot(field_detection_counts, aes(x = "", y = n, fill = Detection)) +
geom_bar(stat = "identity", width = 1, color = "black", alpha=0.75) +
coord_polar("y", start = 0) +
geom_text(aes(label = label),
position = position_stack(vjust = 0.5),
size = 5,
fontface = "bold") +
theme_void() +
theme(legend.position = "none",
#plot.title = element_text(hjust = 0.5, size = 16, face = "bold")
) +
scale_fill_manual(values = c("#e9ecef", "#669bbc"))
ggsave("example output/Fields_piechart.png", width=4, height=4)

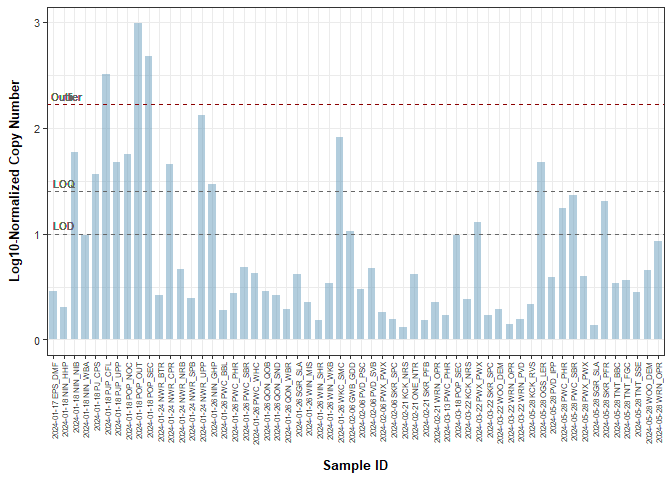

Bar chart
fieldsamples_df %>% subset(Detection == "Present") %>%
ggplot(., aes(x=Sample_ID, y=`Mean Copy Number Normalized`)) +
geom_bar(stat = "identity", width = 0.7, alpha=0.5, fill = "#669bbc") +
labs(
y="Log10-Normalized Copy Number",
x = "Sample ID",
) +
## Outlier line
geom_hline(yintercept = cutoff, color = "darkred", linetype = "dashed", size = 0.5) +
geom_text(aes(y = cutoff, x = 2, label = "Outlier"), hjust = 0.4, vjust=-0.5, color = "grey40", size = 3) +
## LOD line
geom_hline(yintercept=log10(LOD), linetype="dashed", color = "grey40") +
geom_text(aes(y = log10(LOD), x = 2, label = "LOD"), hjust = 0.5, vjust=-0.5, color = "grey40", size = 3) +
## LOQ line
geom_hline(yintercept=log10(LOQ), linetype="dashed", color = "grey40") +
geom_text(aes(y = log10(LOQ), x=2, label = "LOQ"), hjust = 0.5, vjust=-0.5, color = "grey40", size = 3) +
theme_bw() +
## theme variables
theme(panel.background=element_rect(fill='white', colour='black'),
#legend.position = c(0.98, 0.98), # This puts the legend in the top right corner
legend.position = "right",
legend.justification = c(1, 1), # This aligns the legend to the top right
axis.text.y = element_text(size=8, color="grey20"),
axis.text.x = element_text(size=6, color="grey20", angle=90, vjust=0.5, hjust=1),
axis.title.y = element_text(margin = margin(t = 0, r = 10, b = 0, l = 0), size=10, face="bold"),
axis.title.x = element_text(margin = margin(t = 10, r = 0, b = 0, l = 0), size=10, face="bold"),
# New theme elements for strip appearance
strip.background = element_rect(fill = "white", color = "black"),
strip.text = element_text(face = "bold", size = 9)
)
## Warning in geom_text(aes(y = cutoff, x = 2, label = "Outlier"), hjust = 0.4, : All aesthetics have length 1, but the data has 58 rows.
## ℹ Please consider using `annotate()` or provide this layer with data containing
## a single row.
## Warning in geom_text(aes(y = log10(LOD), x = 2, label = "LOD"), hjust = 0.5, : All aesthetics have length 1, but the data has 58 rows.
## ℹ Please consider using `annotate()` or provide this layer with data containing
## a single row.
## Warning in geom_text(aes(y = log10(LOQ), x = 2, label = "LOQ"), hjust = 0.5, : All aesthetics have length 1, but the data has 58 rows.
## ℹ Please consider using `annotate()` or provide this layer with data containing
## a single row.
ggsave("example output/Fieldsamples_barchart.png", width = 9.5, height=5)
## Warning in geom_text(aes(y = cutoff, x = 2, label = "Outlier"), hjust = 0.4, : All aesthetics have length 1, but the data has 58 rows.
## ℹ Please consider using `annotate()` or provide this layer with data containing
## a single row.
## Warning in geom_text(aes(y = log10(LOD), x = 2, label = "LOD"), hjust = 0.5, : All aesthetics have length 1, but the data has 58 rows.
## ℹ Please consider using `annotate()` or provide this layer with data containing
## a single row.
## Warning in geom_text(aes(y = log10(LOQ), x = 2, label = "LOQ"), hjust = 0.5, : All aesthetics have length 1, but the data has 58 rows.
## ℹ Please consider using `annotate()` or provide this layer with data containing
## a single row.

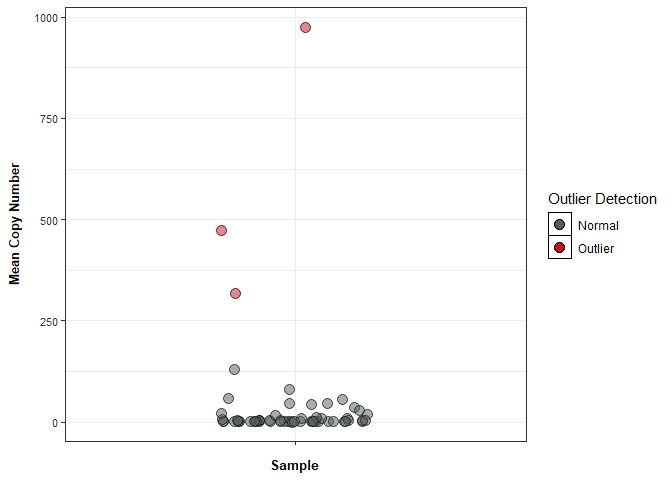

Show distance of outliers
fieldsamples_df %>% ggplot(., aes(x=Sample_Type, y=`Mean Copy Number`,
fill = ifelse(is.na(`Mean Copy Number Normalized`) | is.na(cutoff), FALSE,
`Mean Copy Number Normalized` > cutoff))) +
geom_jitter(width=0.2, size=3.5, color='black', shape=21, alpha=0.5) +
scale_fill_manual(values = c("#545E56", "#c1121f"),
labels = c("Normal", "Outlier")) +
theme_bw() +
#geom_hline(yintercept = cutoff, linetype = "dotted", color = "grey50") +
labs(x = "Sample",
fill = "Outlier Detection"
) +
theme(panel.background=element_rect(fill='white', colour='black'),
legend.position = "right",
axis.text.y = element_text(size=8, color="grey20"),
axis.text.x = element_blank(),
axis.title.y = element_text(margin = margin(t = 0, r = 10, b = 0, l = 0), size=10, face="bold"),
axis.title.x = element_text(margin = margin(t = 10, r = 0, b = 0, l = 0), size=10, face="bold"),
) +
guides(fill = guide_legend(override.aes = list(alpha = 1)))
## Warning: Removed 82 rows containing missing values or values outside the scale range
## (`geom_point()`).
ggsave("example output/Outliers.png", width = 5, height=4.5)
## Warning: Removed 82 rows containing missing values or values outside the scale range
## (`geom_point()`).
Exporting data
blank_df %>% mutate(Date = as.Date(Date)) %>%
dplyr::select(Date, Sample_Location, `Mean Ct`, `Number of Replicates`,
`Mean Copy Number`, `Mean Copy Number Normalized`, Detection) %>%
unite(Sample, Date, Sample_Location, sep = " ", remove = TRUE) %>%
# cut decimals down to 2
mutate(across(where(is.numeric), ~round(., 2))) %>%
write_xlsx("example output/Results_Blanks.xlsx")
### adding some meta for Rich
rich_meta <- read_xlsx("C:/BoxDrive/Box/Science/Fisheries/Projects/eDNA/RI Striped Bass/metadata/eDNA_Data_RI_STB_2024.xlsx") %>%
dplyr::rename(Date = Sample_Date, Sample_Location = Station_Code) %>%
mutate(Sample_Time = format(Sample_Time, format = "%H:%M:%S"))
normalized_df %>% #full_join(rich_meta, ., by = c("Date", "Sample_Location")) %>%
mutate(Date = as.Date(Date)) %>%
dplyr::select(-Number_of_Filters) %>% write_xlsx("example output/Results.xlsx")
